MI30 Iris Recognition Module
Binocular Iris Module for Smart Lock & Cabinet Integration

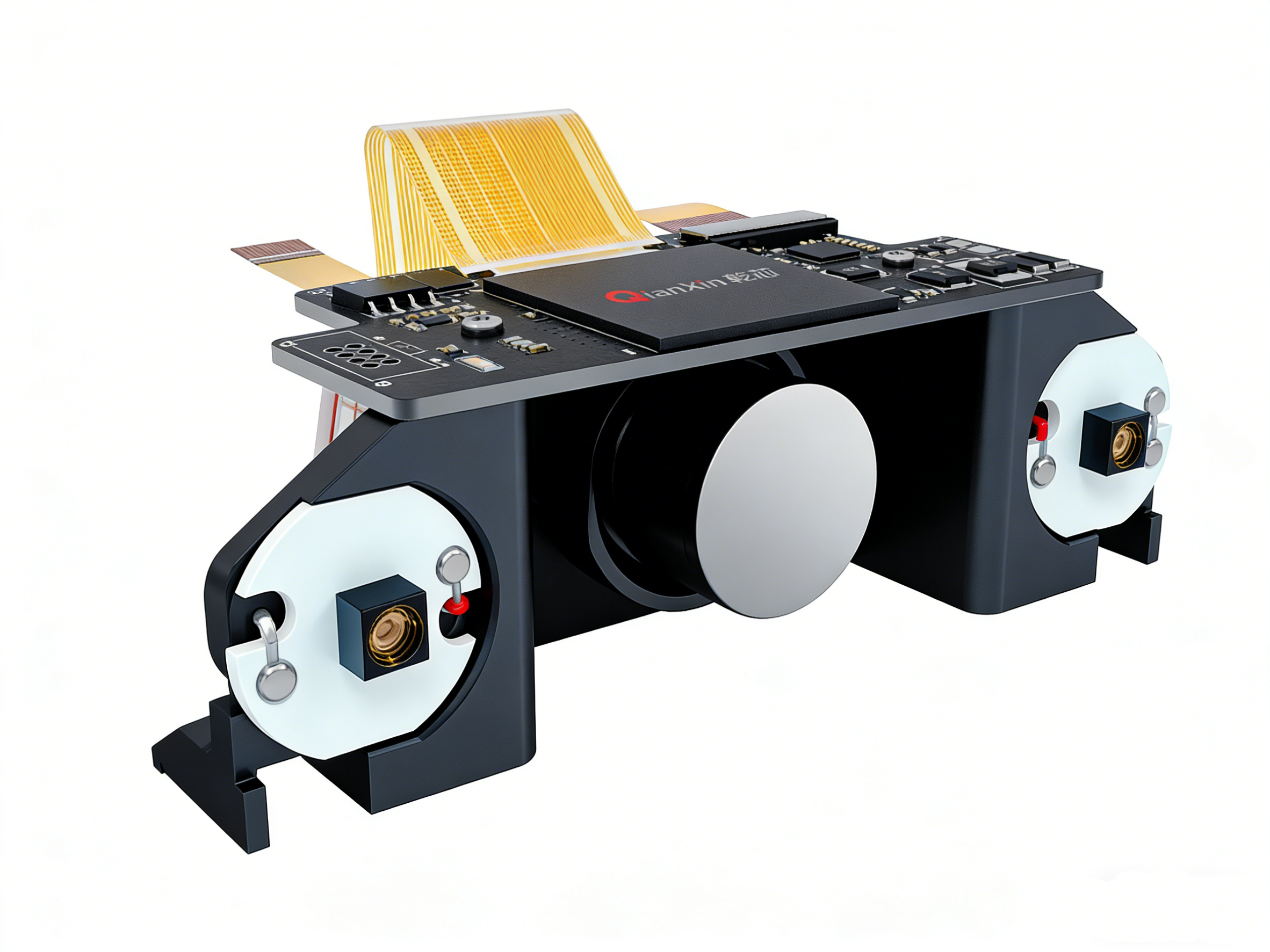

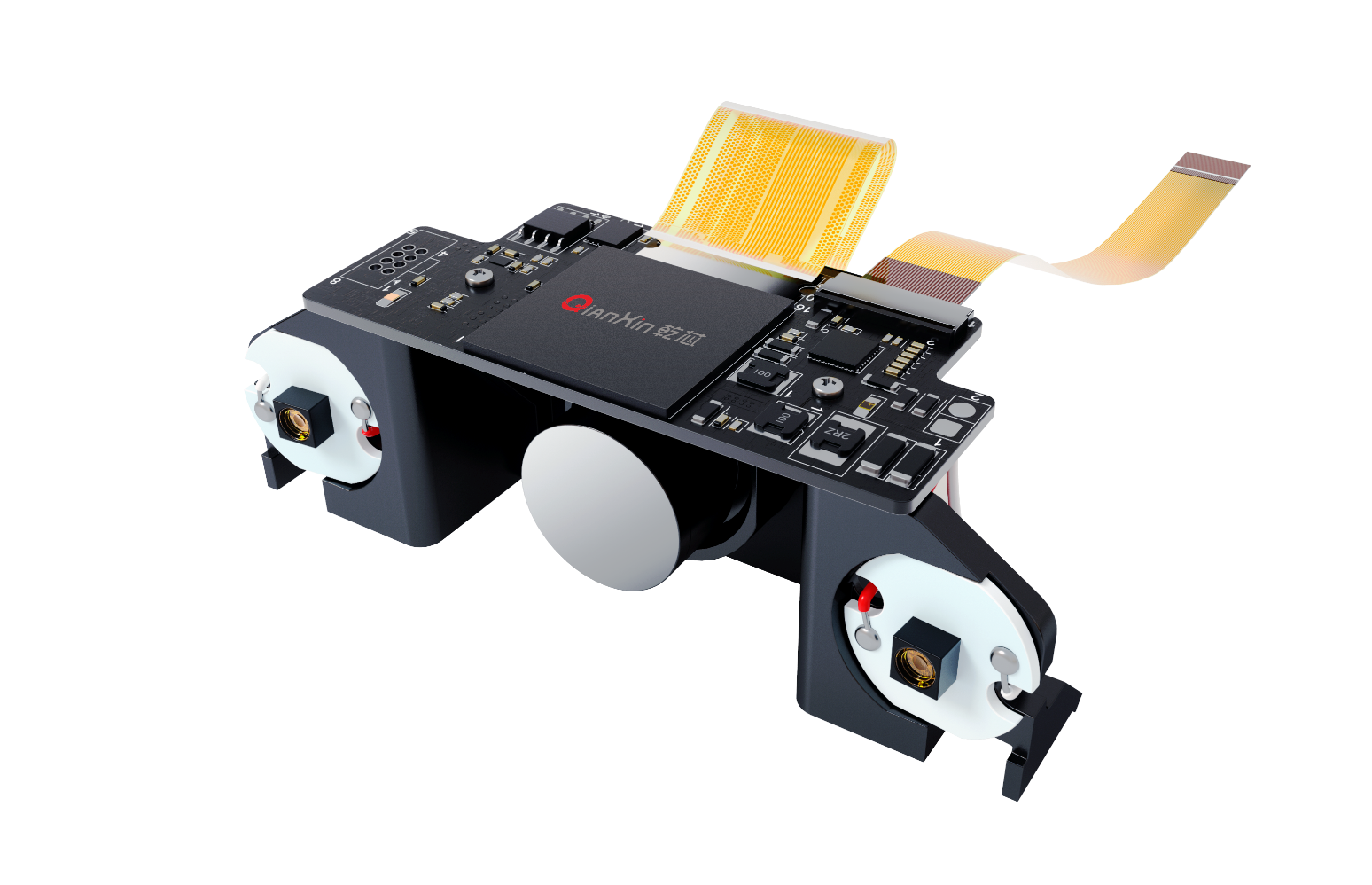

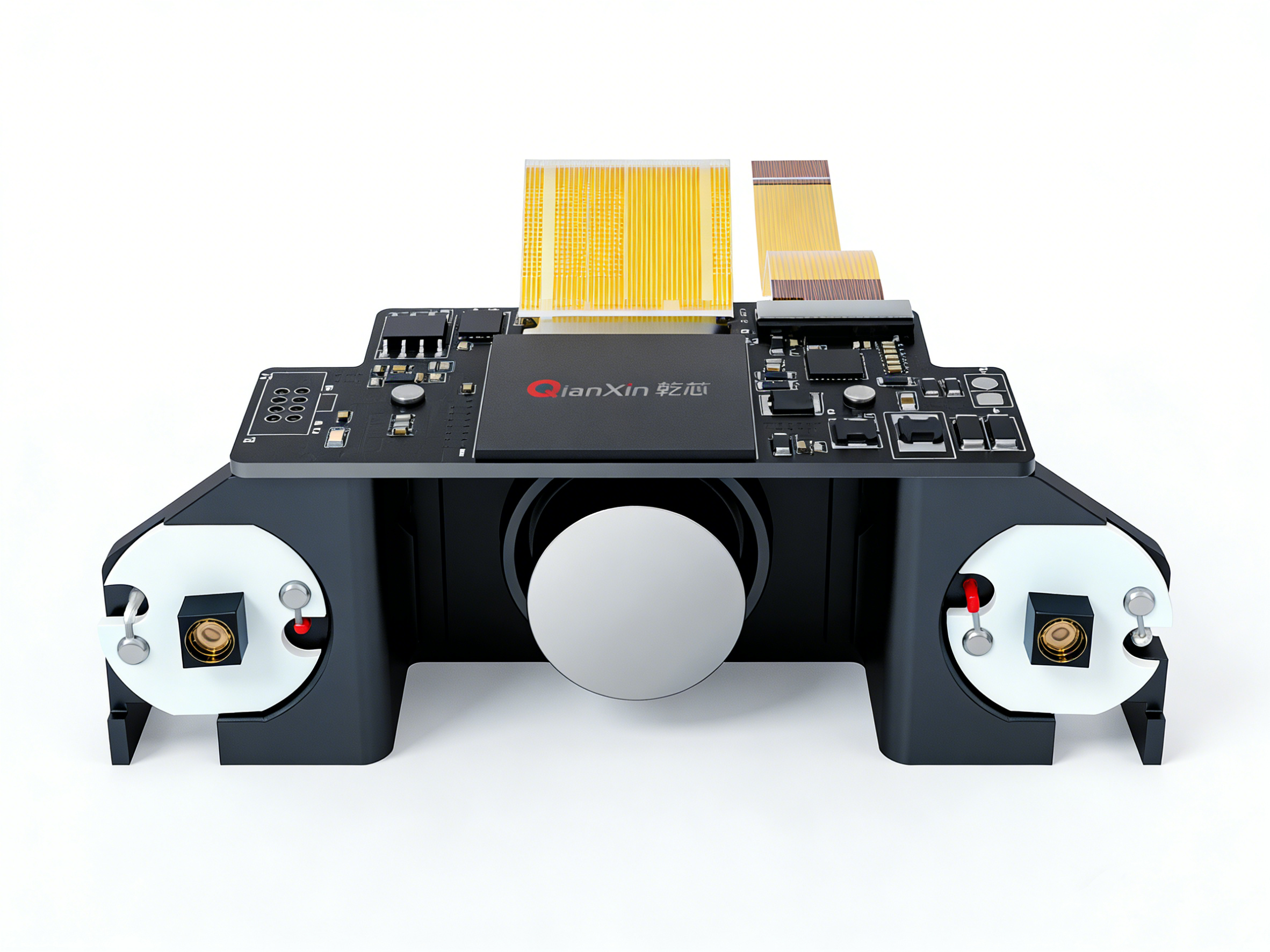

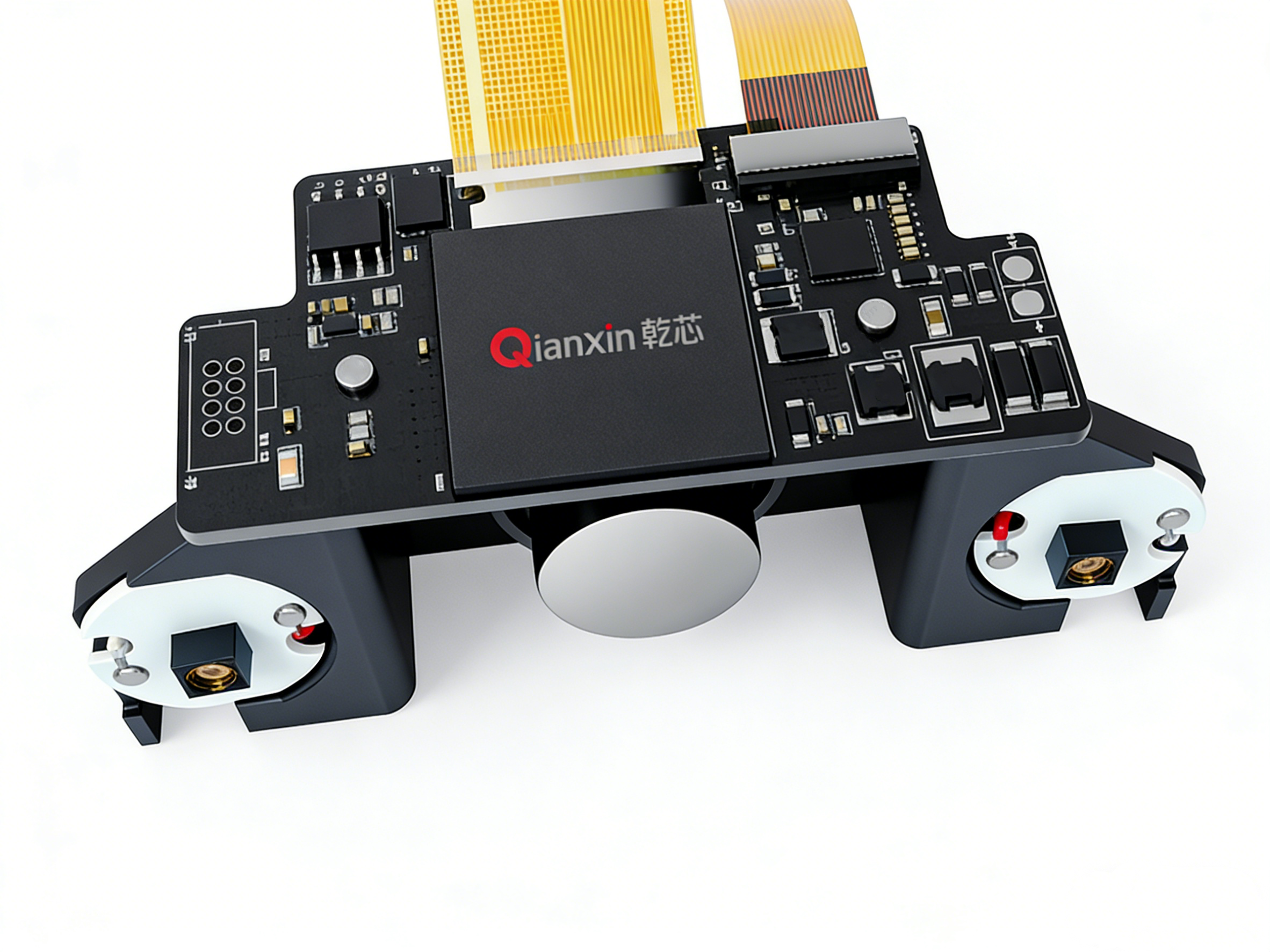

The MI30 is an ultra-compact binocular iris recognition module purpose-built for smart door locks and space-constrained installations. At just 68 x 26 x 23 mm and weighing only 50g, it is one of the smallest full-function iris modules on the market. The dual-camera design captures both eyes simultaneously for faster, more reliable identification in real-world conditions. Connected via FPC ribbon cable, the MI30 integrates directly onto lock PCBs without adding bulk. The PhaseIris 3.0 algorithm provides the same military-grade accuracy as larger modules, with sub-second recognition and a 10⁻⁷ false acceptance rate. Ideal for residential smart locks, secure cabinets, and miniaturized access points where space is at a premium.
Dimensions
68 x 26 x 23 mm
Interface
FPC connector
Recognition
< 1 second
FAR
10⁻⁷
Starting from
$235 / unit (25-49 qty)
Key Features

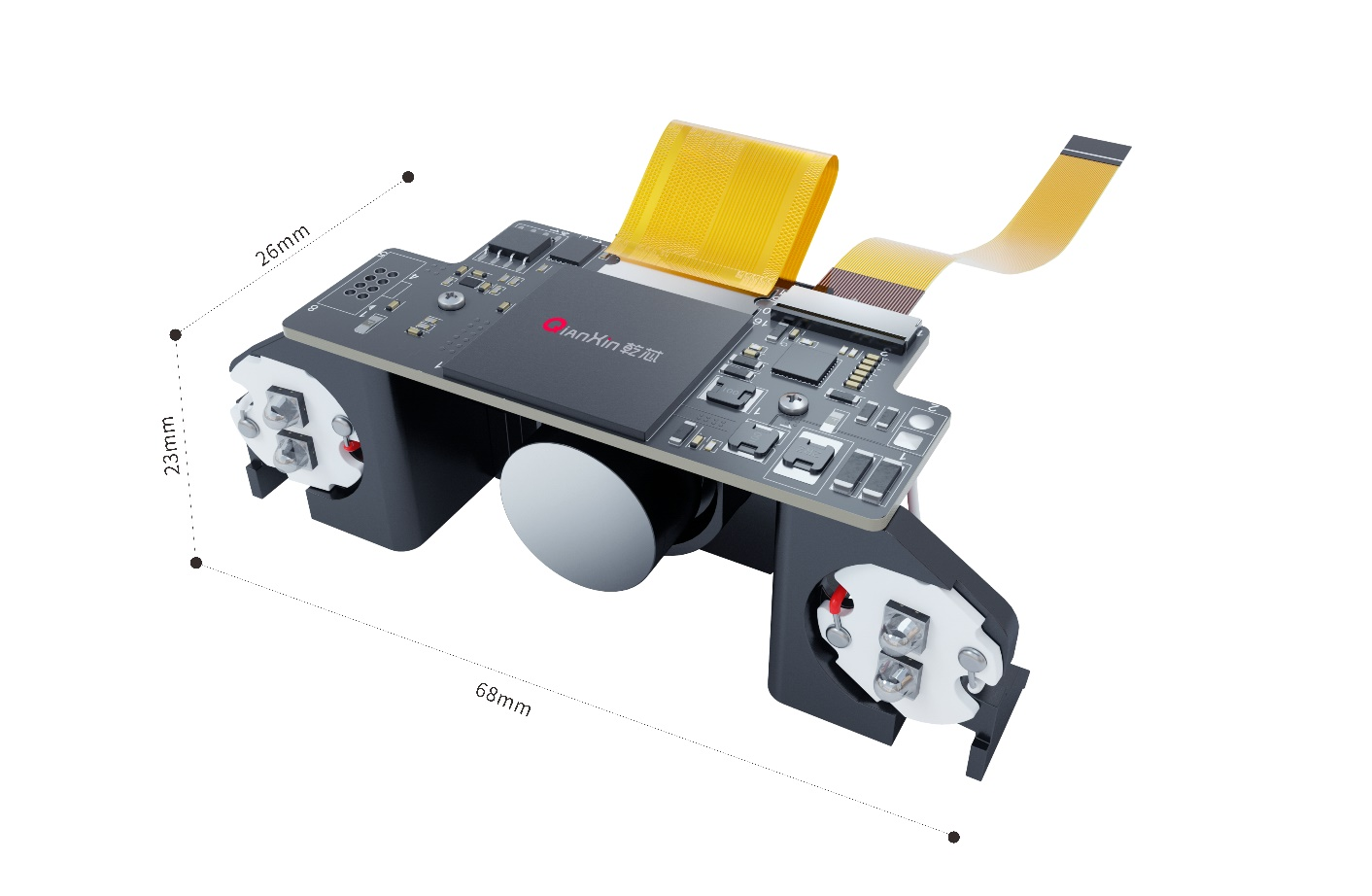

- Ultra-compact 68 x 26 x 23 mm — fits inside any smart lock
- Only 50g — lightest iris module in its class
- Binocular dual-camera capture for higher reliability
- FPC connector for direct PCB-level integration
- 3.2W low power consumption — battery-friendly
- PhaseIris 3.0 with 10⁻⁷ FAR accuracy
- Sub-second recognition with 370-500mm working distance
- Complete SDK with sample code for rapid development
Applications
Why Choose the MI30
Military-Grade Security
With a false acceptance rate of 10⁻⁷, iris recognition is 100x more accurate than fingerprint and cannot be spoofed with photos or replicas.
Sub-Second Speed
Recognition completes in under one second with 10,000 templates/second comparison throughput, enabling smooth user experience even at scale.
Easy OEM Integration
FPC connector interface with comprehensive SDK, sample code, and technical support. Drop-in module design fits 68 x 26 x 23 mm.
Technical Specifications

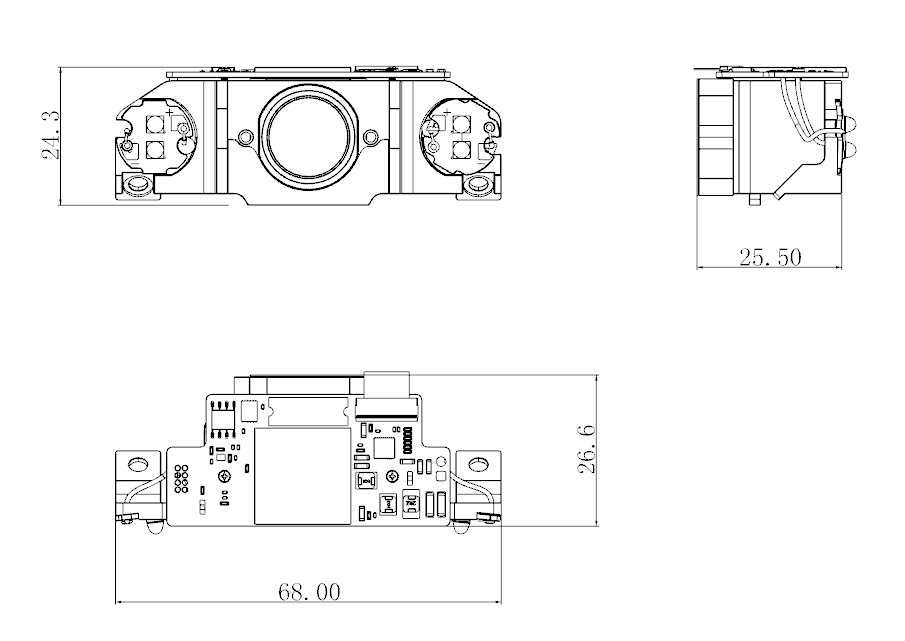

| Dimensions | 68 x 26 x 23 mm |
| Weight | 50g |
| Interface | FPC connector |
| Power Consumption | 3.2W |
| Working Distance | 370-500mm |
| Identification | Single eye / both eyes |
| Imaging Band | 850nm NIR |
| Resolution | 640 x 480 |
| Frame Rate | 25 fps |
| Encoding Speed | 20 pictures/second |
| Comparison Speed | 10,000 templates/second |
| FAR | 10⁻⁷ |
| FRR | 10⁻³ |
| Storage Capacity | 100 users (expandable) |
| Operating Temperature | 0-45°C |
| Recognition Time | < 1 second |
| Algorithm | PhaseIris 3.0 |
Integration Guide
Wiring & Mounting
Connect the MI30 using the 20-pin FPC ribbon cable directly to your lock PCB. The module requires 3.3V DC power at 3.2W max. Refer to the pinout diagram in the SDK package for UART TX/RX, power, and GPIO assignments.
SDK & Development
The SDK supports Linux (ARM) and Android platforms optimized for embedded lock controllers. Libraries are provided in C and Java. Sample code covers enrollment, verification, and low-power wake-on-approach integration.
Protocol & Communication
Communication uses UART (115200 baud) with a compact binary protocol designed for low-latency embedded use. GPIO lines provide wake, status, and match-result signals for direct MCU integration without software overhead.
Volume Pricing
| Quantity | Unit Price |
|---|---|
| 1-4 units | $299 |
| 5-9 units | $269 |
| 10-24 units | $250 |
| 25-49 units | $235 |
| 50+ units | Contact Sales |
Integration Information
Interface
FPC connector connection with standard protocol support. SDK and API documentation provided with purchase.
Algorithm
Built-in PhaseIris 3.0 engine with on-device processing. No cloud connectivity required for identification.
Support
Technical integration support included. Contact our engineering team for custom firmware and feature requests.
